Abs Pump Motor Control Circuit

This is most likely to occur in warmer areas above 90 F and usually after a quick stop like a refueling. A vehicles ABS control module is sent wheel speed readings from each wheel speed sensor using the data to determine if an ABS event is necessary.

How To Replace An Abs Control Module Yourmechanic Advice

This unit can be checked by measuring the resistance between each pump motor control circuit and the housing of the BPMV.

Abs pump motor control circuit. The Anti-Lock Brake System ABS Module monitors the ABS Pump Motor. An ABS control module. When ABS or TCS operation is required EBCM activates pump motor relay and battery power is provided to the pump motor.

The Anti-Lock Brake System ABS motor relay Skid Control ECU interior circuit supplies the power to the ABS pump motor. Standard Motor Products ALS1926 ABS Speed Sensor For 06-09 Aspen Durango Fits. When the ignition switch is turned to the RUN position the ABS control module will do a preliminary electrical check and at approximately 20 kmh 12 mph the pump motor is turned on for approximately one-half second.

The Electronic Brake Control Module EBCM applies the ground needed for pump motor activation. Anti-lock Brake System ABS Module detects that the pump motor has a poor groundABS has internal pump motor driver shorted. Learn what ABS Pump Motor Control Circuit means location and how to repair.

The ABS motor relay supplies power to the ABS pump motor. Codes co267pump motor circuit open co281stop lamp switch circuit. If no faults can be found in the pump motor circuit after proper diagnostics there is a revised ABS control module which should correct this concern.

You can test the pump with a diagnostic scan tool like SnapOn or similar that has this feature to turn the ABS pump On or Off. Results Pagination - Page 1. Circuit Description Pump motor is an integral part of BPMV while pump motor relay is integral to EBCM.

The ABS Module detects low ABS Pump Motor feedback voltage with actuation of the pump. The ABS light can come on indicating an ABS pump motor circuit fault. While the ABS is activated the Skid Control ECU turns the motor relay ON and operates the ABS pump motor.

If the still comes up again then this is because the pump is not functioning. Code history - co 222 226 265 Where do we. The low side of the pump motor has a feedback circuit to the EBCM.

While the ABS is activated the ECU turns the motor relay on and operates the ABS pump motor. When the pump motor is winding down after being commanded ON and then OFF feedback voltage is low. The ABS Module detects low ABS Pump Motor feedback voltage with actuation of the pump.

If the voltage supplied to the motor relay BM is below the DTCs detection threshold due to low voltage from the. The ABS control module is self-monitoring. Pump motor relay is not engaged during normal system operation.

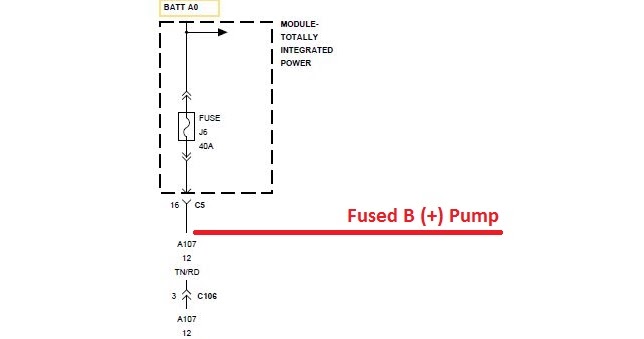

When the pump motor is commanded OFF and at rest feedback voltage is high. How to repair C1073 Dodge code ABS Pump Motor Control Circuit The Anti-Lock Brake System ABS Module monitors the ABS Pump Motor. This is caused by internal parts of the pump causing the motor to fail which will cause an improper voltage feedback which sets the code.

A wheel speed sensor electrically senses every tooth of an ABS sensor indicator as it passes through the wheel speed sensors magnetic field. A code C1095 will be stored when the ABS hydraulic pump motor circuit fails. 2000 4wd s10 with 43 engine ABS pump stays on even with ignition off pump gets hot.

DTC sets when pump motor voltage is not present 60. ABS Pump Motor circuit poor electrical connection.
