Abs Pump Motor Circuit Open

The low side of the pump motor has a feedback circuit to the EBCM. The low side of the pump motor has a feedback circuit to.

2000 Toyota Land Cruiser Abs System Problem Need Help Ih8mud Forum

Immediately after the ignition switch is turned to the ON position the relay turns on if the solenoid is determined to be normal.

Abs pump motor circuit open. Pump motor relay is not engaged during normal system operation. In this case it means the ABS hydraulic pump motor circuit has failed. ABS rear wheel speed circuit open shorted.

If present diagnose and repair DTC C2116 ABS PUMP MOTOR SUPPLY LOW VOLTAGE before diagnosing this DTC. Check the pump motor for excessive current draw. Remove the cover to the ABS unit.

Whenever youre working with your cars electrical system especially when dealing with sensitive electronic components like an ABS control unit be sure to disconnect the negative battery terminal to be sure you dont cause any damage. The ABS pump motor gets its running instructions from the Electronic Brake Control Module EBCM. Monitor ABS Pump Motor.

You can test the pump with a diagnostic scan tool like SnapOn or similar that has this feature to turn the ABS pump On or Off. DESCRIPTION This relay supplies power to each ABS solenoid. The manual says to check fuse check ground if those pass then its the whole assembly that needs replacing.

When the pump motor is winding down after being commanded ON and then OFF feedback voltage is low. Codes co267pump motor circuit open co281stop lamp switch circuit. This module has been designe.

ABS front release solenoid circuit openhigh resistance. The EBCM monitors this feedback voltage in. 5 out of 5 stars.

By preventing the wheels from locking up the driver is able to maintain steering control and stop in the shortest possible distance under most conditions. Vehicle must be driven above 40 kmh 25 mph for set conditions to be met. PUMP MOTOR CIRCUIT OPEN 67 CONTINUED 7.

When autocomplete results are available use up. It has all these tubes coming in and out of it. If either the power or ground wires to the EBCM are corroded or the connected has water intrusion it can run the pump motor continuously.

DTC Descriptors This diagnostic procedure supports the following DTCs. Its right up next to the fire wall and shock tower. Photo by Matt Wright 2008 Before you begin.

DTC sets when pump motor voltage is not present 60. This video is an extract from to the AutoMate Body Chassis Diagnostics training module covering ABS Pump Motor circuit faults. 1 Select a store to see pricing availability.

When ABS or TCS operation is required EBCM activates pump motor relay and battery power is provided to the pump motor. 2000 4wd s10 with 43 engine ABS pump stays on even with ignition off pump gets hot. Connect a 10 gauge jumper wire between ABS Pump Motor Fused B circuit and a 40 Amp Fused B circuit.

Circuit Description Pump motor is an integral part of BPMV while pump motor relay is integral to EBCM. ABS front apply solenoid circuit openhigh resistance. The EBCM monitors this feedback voltage in order to determine if the motor is functioning properly.

Cycle the ignition switch from off to on road test the vehicle over 40 kmh 25 mph. The Anti-Lock Brake System ABS prevents wheel lock-up by monitoring the wheel speed sensors and actuating Hydraulic Control Unit HCU modulating the brake pressure to prevent wheel lockup. If the still comes up again then this is because the pump is not functioning.

ABS Hydraulic Pump Motor Circuit Short To Ground. Code history - co 222 226 265 Where do we. Yup its the abs motor thingie.

The brains behind your ABS and traction control systems are. Search for a store page input 1. Connect a 10 gauge jumper wire between ABS Pump Motor ground circuit and ground.

When the pump motor is winding down after being commanded ON and then OFF feedback voltage is low. Thats on the passenger side same side with the engine in the US. This is caused by internal parts of the pump causing the motor to fail which will cause an improper voltage feedback which sets the code.

When the pump motor is commanded OFF and at rest feedback voltage is high. The traction control system is controlled by the Powertrain Control Module PCM and utilizes the ABS. DTC C0267 Pump Motor Circuit Open.

ABS ECU internal error. DTC C0268 Pump Motor Circuit. Then listen to it to see if it makes too much noise.

The traction control system is controlled by the Powertrain Control Module PCM and utilizes the ABS. It makes your abs work. Turn the ignition on with the scan tool erase DTC.

The Electronic Brake Control Module EBCM applies the ground needed for pump motor activation. Learn what ABS Pump Motor Circuit Open means location and how to repair. Disconnect the ABS Pump Motor connector.

Read reviews for Cardone Remanufactured 2 Terminal ABS Pump and Motor Assembly. The low side of the pump motor has a feedback circuit to the EBCM. ABS PUMP MOTOR INOPERATIVE Turn the ignition off.

By preventing the wheels from locking up the driver is able to maintain steering control and stop in the shortest possible distance under most conditions. When the pump motor is commanded OFF and at rest feedback voltage is high. ABS Hydraulic Pump Motor Circuit Open.

Codes related to the C1095 include. The Anti-Lock Brake System ABS prevents wheel lock-up by monitoring the wheel speed sensors and actuating Hydraulic Control Unit HCU modulating the brake pressure to prevent wheel lockup. The Electronic Brake Control Module EBCM applies the ground needed for pump motor activation.

ABS Pump And Motor. The C1095 code is a manufacturer-specific chassis code. Open in ABS Solenoid Relay Circuit.

Abs Anti Lock Braking System Motor Repair Youtube

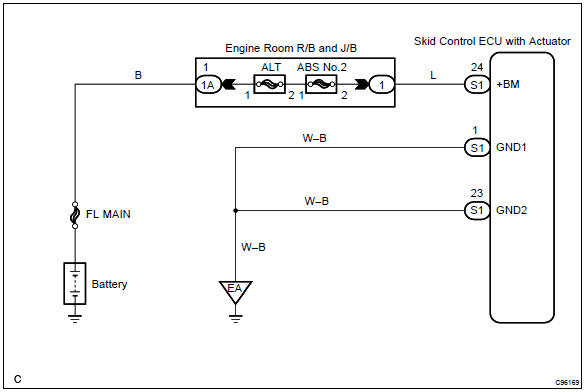

Toyota Tacoma 2015 2018 Service Manual Pump Motor Relay C1253 Vehicle Stability Control System For Hydraulic Brake Booster Brake Control Dynamic Control Systems
